Flexible and modular, our Cetus shopfitting system offers a wide range of components that enable you to create a shelf set up that suits your product range and space. A reduced shelf depth is perfect for displaying smaller products such as vitamins, supplements or cosmetics, without taking up a lot of square footage in your store.

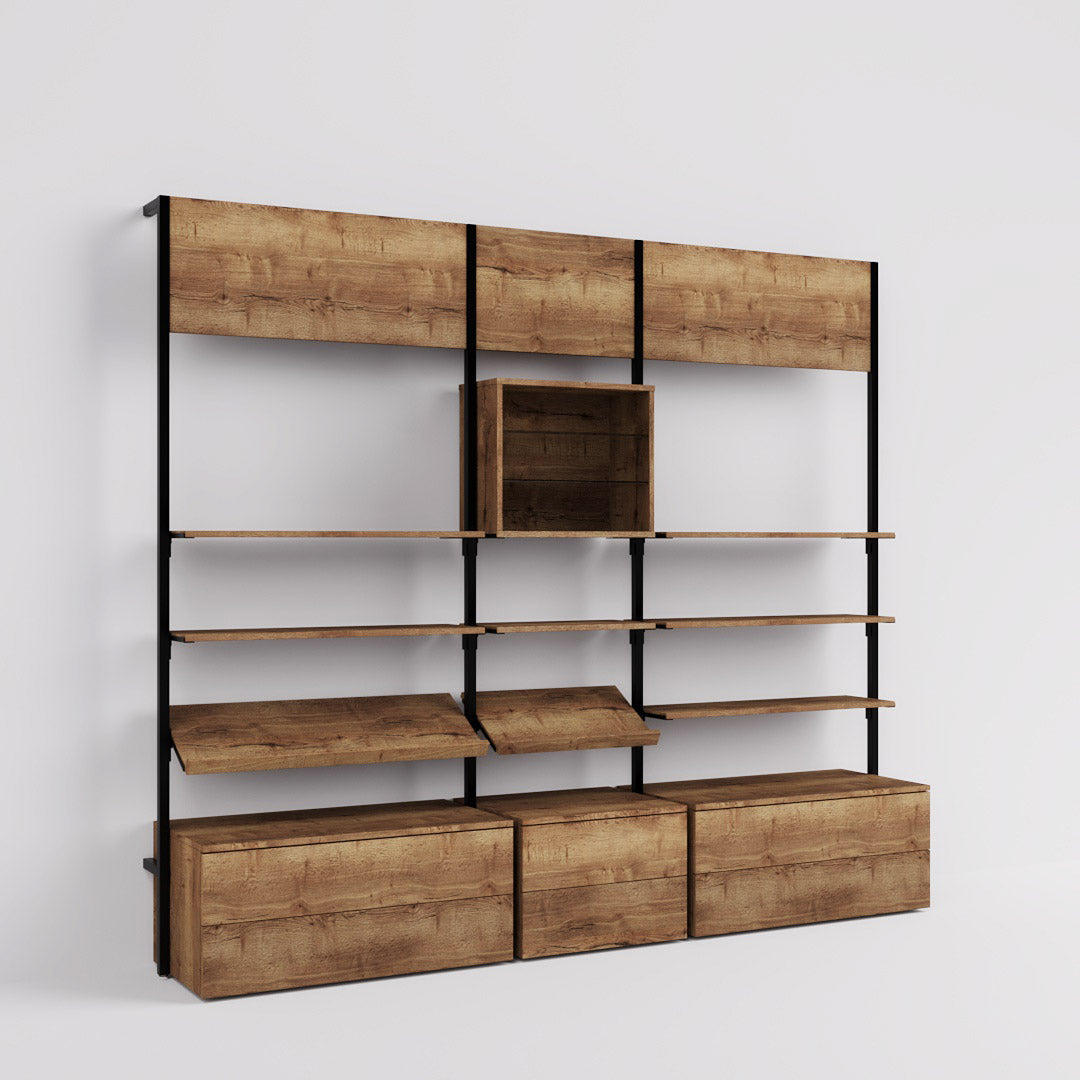

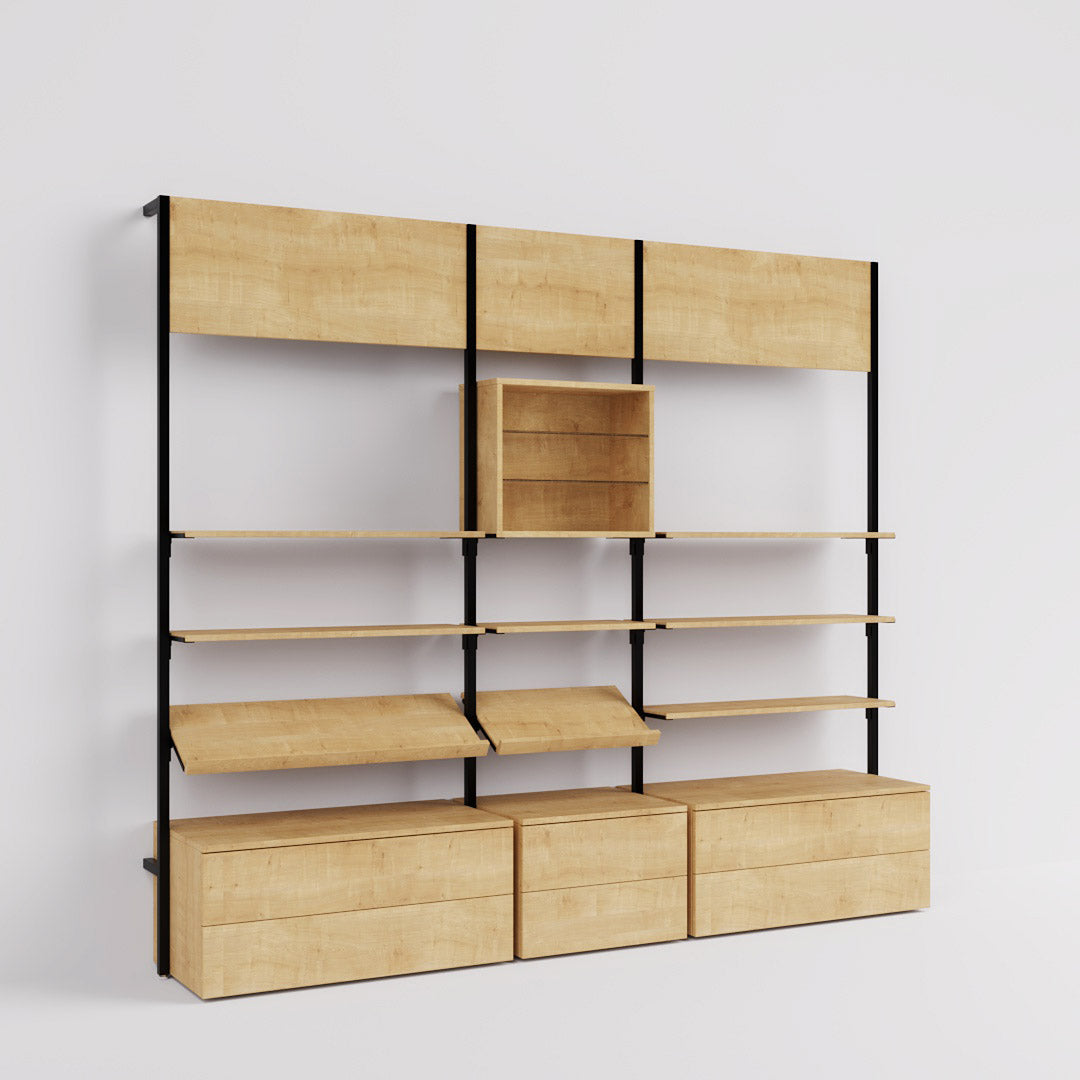

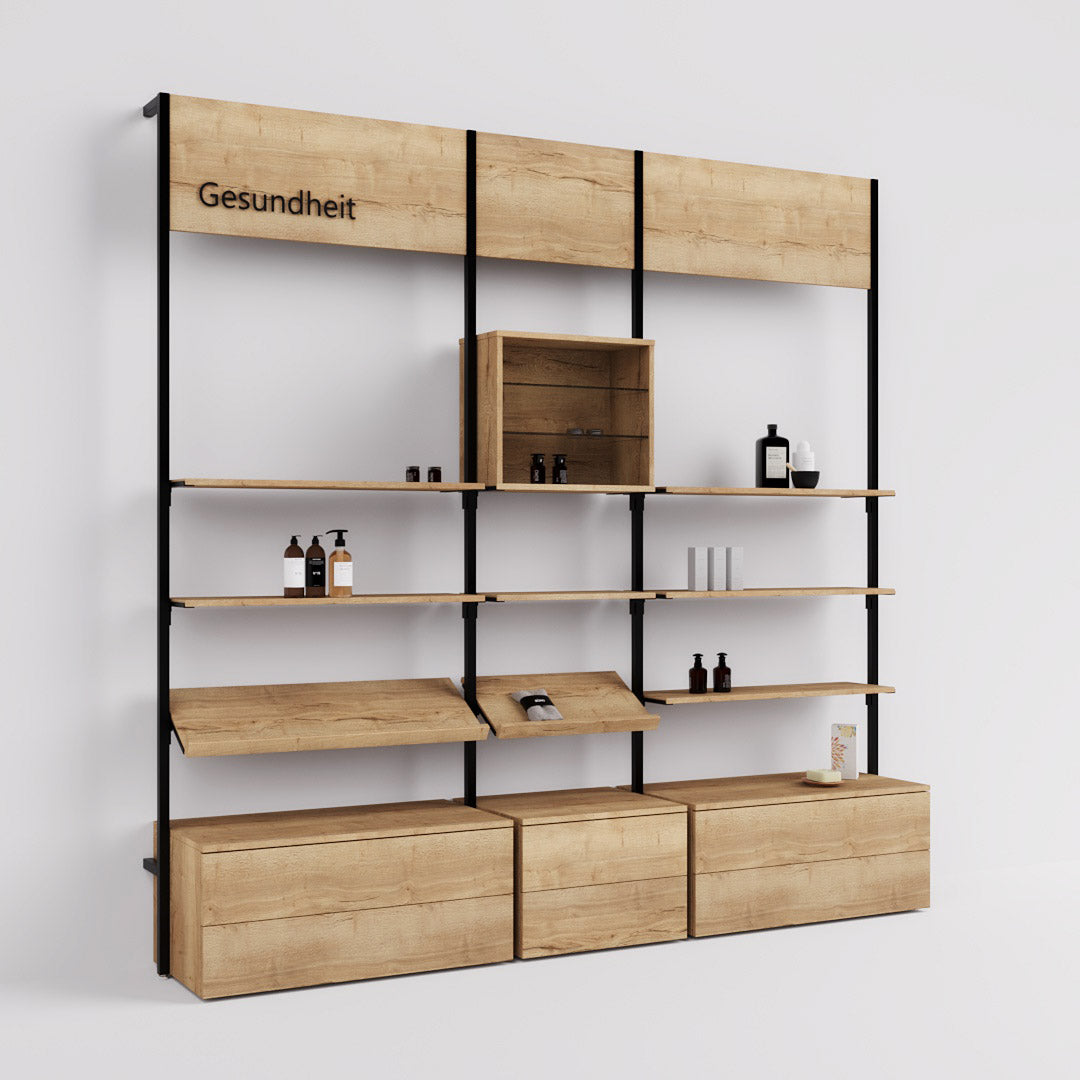

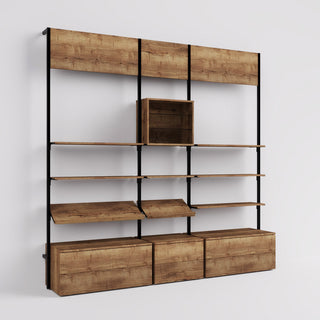

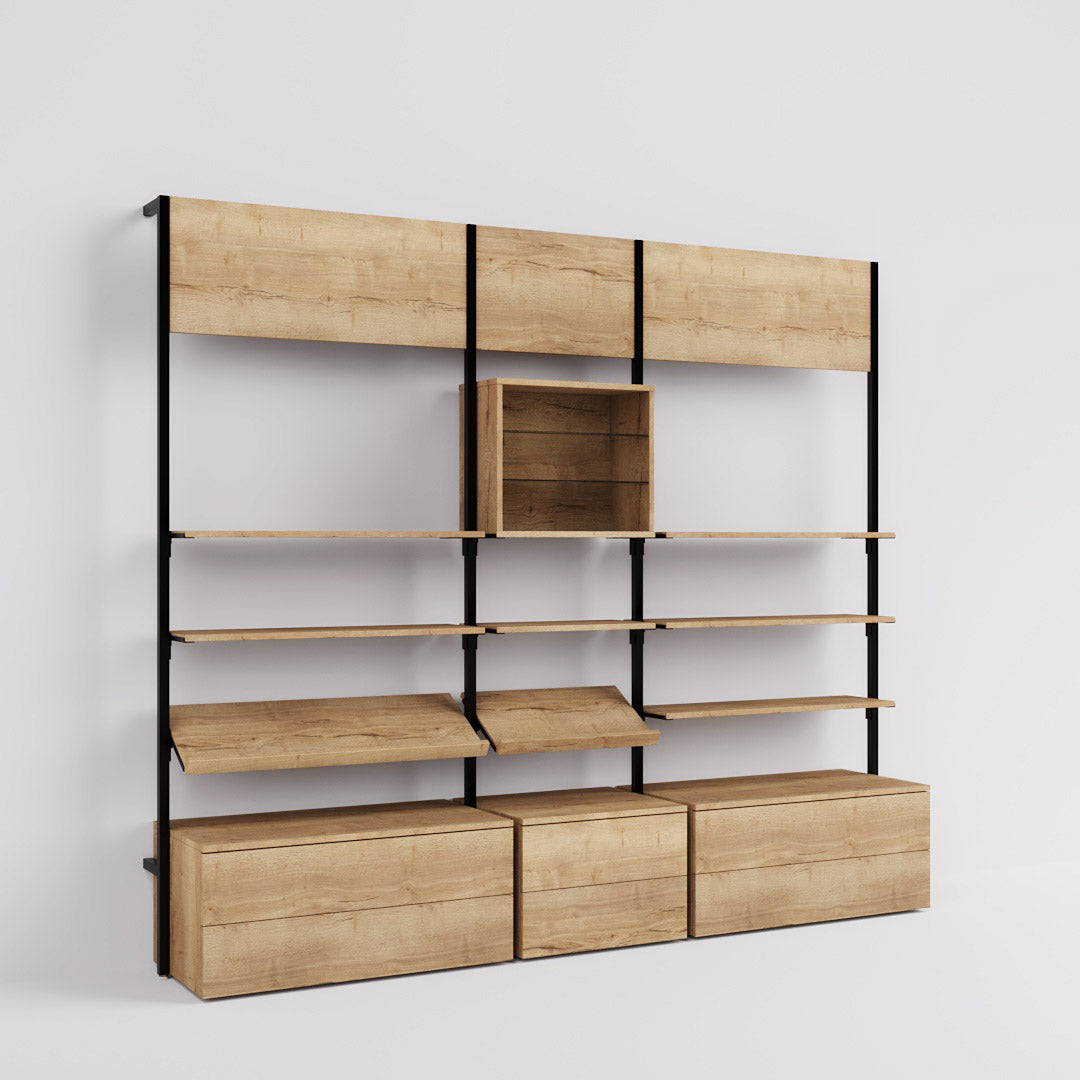

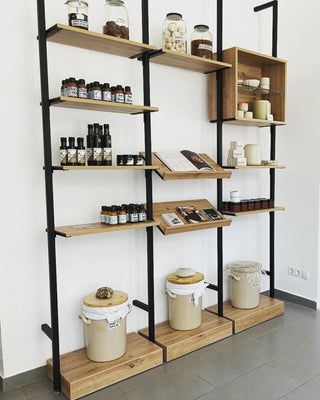

Cetus shelf style 3 features plenty of space for display, creativity and storage of your products for current and coming seasons. It comes with two angled shelves, a presentation box and five straight shelves. The space underneath is elegantly utilised with three storage boxes. Three display board offer space for brand logos or product categories. The display box comes with a further two practical glass shelves.

All elements are height adjustable in 5 cm / 1.97" increments thanks to a perforated grid in the frame.

Overall dimensions:
Width: 265,5 cm / 104.53"
Depth without storage box duo / pedestals: 31.5 cm / 12.41"
Depth including storage box duo / pedestals : 50 cm / 19.69"
Height: 230 cm / 90.56" or 260 cm / 102.37"

Shelf board dimensions
Depth: 28 cm / 11.02"
Thickness: 19 mm / 0.75"

Display board height: 40 cm / 15.75"

Storage box dimensions:
Depth: 50 cm / 19.69"
Height: 48,6 cm / 19.13"

Custom dimensions are available on request.

Wall uprights and display fittings: steel
Shelf boards, storage boxes, display boards, presentation box: 19 mm thick melamine coated chipboard
Shelf boards in presentation box: 8 mm ESG safety glass

Other materials, such as solid wood, available on request.

Wall uprights: structure Ral powder-coated black 9005
Shelf boards, display boards, storage boxes, presentation box: wood decor of choice

Additional wood finishes or colors are available upon request.

All shelf boards hold up to 15 kg / 33.1 lbs each.

4 x Wall upright
14 x Shelf bracket for straight shelf
4 x Shelf bracket for angled shelf
5 x Shelf board AM 1000 D 280
1 x Shelf board AM 625 D 280
1 x Shelf board angled 30° AM 1000 D 323
1 x Shelf board angled 30° AM 625 D 323
1 x Presentation box AM 625 , H 500
2 x Glass shelves for presentation box
2 x Storage box Duo AM 1000 H 486
1 x Storage box Duo AM 625 H 486
2 x Display board AM 1000
1 x Display board AM 625

Assembly Instructions PDF

Assembly instructions are provided in the delivery. All our furniture is designed specifically for easy and smooth assembly- and disassembly, requiring minimum tools.

The wall mounting can be optionally concealed or also with visible wall flange.

Decorative items are not included in the scope of delivery.Instructions for assembly are included.

Please note that the pictures can only give a color example.The digital images may vary depending on the screen setting.Such circumstances are not defects and do not entitle you to assert warranty rights.
If you want a variant other than the one in the picture, please contact us by phone on 034341 4070950 or by e-mail: info@mandai-design.com.
